How does it work?
Our testing process is designed to be simple, fast, and reliable. Place your device under test (DUT) into the fixture, close it to make secure connections, and let the automated system handle the rest. The test sequence runs with precision, capturing all measurements and verifying performance against defined limits. Within minutes, you receive a clear pass/fail status along with detailed results, so you can move forward with confidence.

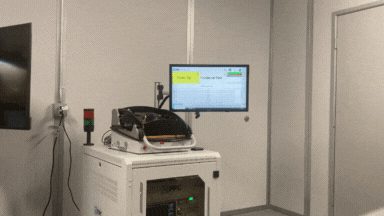

1. Insert DUT
_gif.gif)

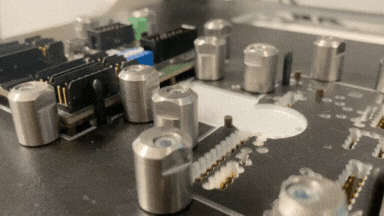

2. Close Fixture
_gif.gif)

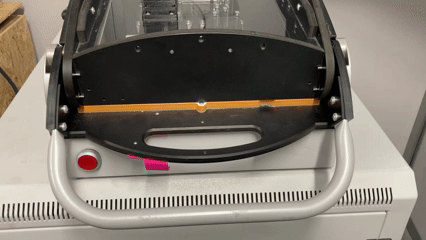

3. Automated Test
_gif.gif)
4. Review Results
Main Components of Board Fixture
_gif.gif)
Fixture Base
The fixture base provides a stable platform for the board under test (DUT). It houses precision-aligned test probes, guiding pins, and mechanical supports that ensure consistent, repeatable contact with test points on the PCBA. Designed for durability and accuracy, it forms the foundation of reliable testing.
Fixture Lid
The fixture lid secures the DUT in place, pressing the board onto the test probes with uniform force. This guarantees solid electrical connections without damaging components. Easy to operate and ergonomically designed, the lid helps reduce operator fatigue while maintaining consistency across test cycles.
Test Equipment Connection
Inside the fixture are wiring harnesses, interface boards, and connectors that link the DUT to external test equipment. These connections route signals to instruments, data acquisition hardware, or power supplies, enabling automated measurements and full test coverage.
Able to integrate into any production line
Full Turnkey Solutions
Easy to use software
Our software is designed to make testing effortless. Control any piece of test hardware from a single interface, guide operators with an intuitive and user-friendly UI, and generate automated reports with clear pass/fail results. Whether you’re running quick checks or full production test sequences, the software keeps everything organized, repeatable, and easy to operate — no programming expertise required.
Control Any Hardware
Intuitive Operator UI
